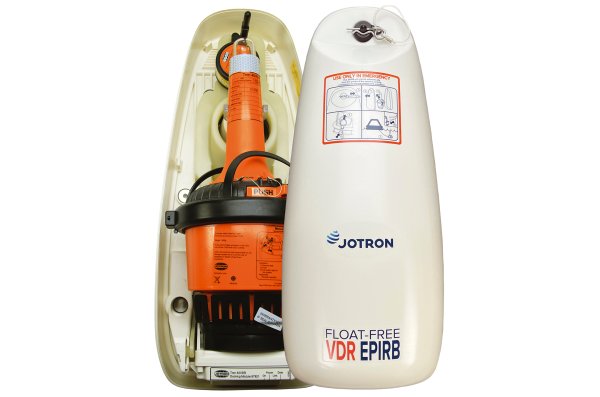

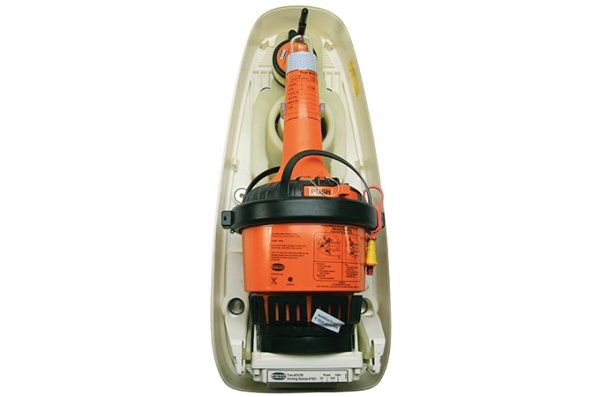

Tron 40VDR Capsule with bracket
Part Number: 87940
End of Life notification – Tron 40VDR float free capsule and belonging service parts
Replacement product: Please see Tron 40VDR AIS

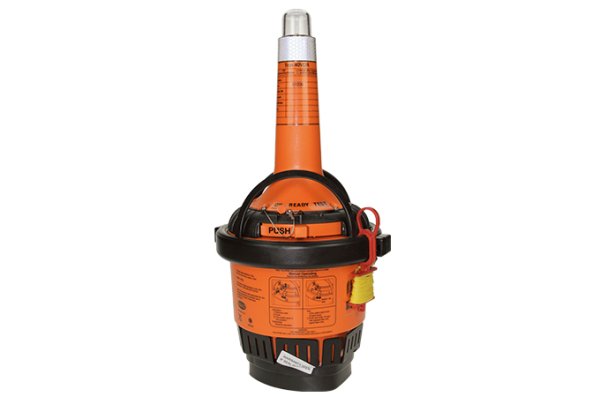

Tron 40VDR Float-free capsule is a combined Cospas-Sarsat and MED approved EPIRB and a float free storage medium. The separate VDR storage module contains a standardized memory capacity at 64Gb. Available with float-free heating bracket.
Complies to the latest VDR performance standards IMO MSC.333 (90) and IEC61996-1 Ed.2.
Accessories and spare parts are handled by the VDR system manufacturers directly. Certain product parts might require configuration prior to installation. These manufacturers and their certified partners must preform all service and maintenance on the Tron 40VDR. For additional information, please contact your VDR system manufacturer or your Area Sales Manager at Jotron.
Requires:
99897 Programming of EPIRB
Date
Name
Size
Download
06.03.25
Dimension drawing Tron 40VDR
345 KB
Documentation type
Date
Type
Name
Size
Download
03.07.19
Certificate
COSPAS SARSAT TAC report (no. 185) Tron 40VDR
87 KB
03.07.19
Certificate
COSPAS SARSAT TAC report (no. 318) Tron 40VDR
85 KB
03.07.19
Certificate
COSPAS SARSAT Type approval Tron 40VDR
216 KB
10.01.20
Certificate
FCC Tron 40VDR
85 KB
17.09.21
Certificate
MED-B Tron 40VDR
127 KB
17.01.18
Certificate
USCG Tron 40VDR
94 KB
14.04.23
Dangerous goods
PSI 40VDR
217 KB
14.04.23
Dangerous goods
PSI Lower battery module, SBM-kit Tron 40VDR
215 KB
18.08.20
Dangerous goods
UN 38.3 TSR 40VDR and spare battery Tron 40VDR
263 KB
31.10.19
Data sheet
FBH-40 Bracket
571 KB
14.11.22
Declaration
Declaration of conformity Tron 40VDR
150 KB
05.02.21
Declaration
Inventory of hazardous material Tron 40VDR and FB-40 Float-free bracket
215 KB
24.10.18
Disposal
Disassemble, disconnect and recycle
741 KB
04.01.22
Manual
User manual Tron 40VDR
2394 KB
31.01.23
Notice
End of life Tron 40VDR
105 KB
17.11.18
Product safety information
SAFT Battery information sheet
622 KB
30.10.17
Technical bulletin
TB01-2015 Tron 40VDR Mounting rev 1
751 KB
06.07.20
Technical bulletin
TB01-2020 Wrist strap on Jotron EPIRBs
280 KB
13.08.20
Technical bulletin
TB02-2020 Requirements when exchanging battery
250 KB
06.09.23
Technical bulletin
TB02-2023 Jotron EPIRBs water contact test
171 KB
17.09.19
Technical bulletin
TB04-2019 Tron 40VDR used as main EPIRB
432 KB
17.01.25
Technical bulletin
TB05-2024-1 Battery lifetime on GMDSS products
245 KB
30.10.17
Technical bulletin
TB06-2014 Tron 40VDR Fitting lanyard
601 KB
05.11.20
Technical bulletin
TB06-2020 EPIRB programming important information
509 KB
30.10.17
Technical bulletin
TB07-2014 Tron 40VDR Secure and seal switch
553 KB
Hydrostatic Release Kit FB-60/FB-40/FBH-40/FB-42/FBH-42
Part Number: 86218
SBM-kit Tron 40VDR battery module
Part Number: 89340
Spare 40VDR docking module MkII
Part Number: 100941
Spare 40VDR bumper with labels (5 pieces)
Part Number: 100783
Spare 40VDR silicone grease tube
Part Number: 100946
Spare FBH-40 heating bracket without docking
Part Number: 100800
