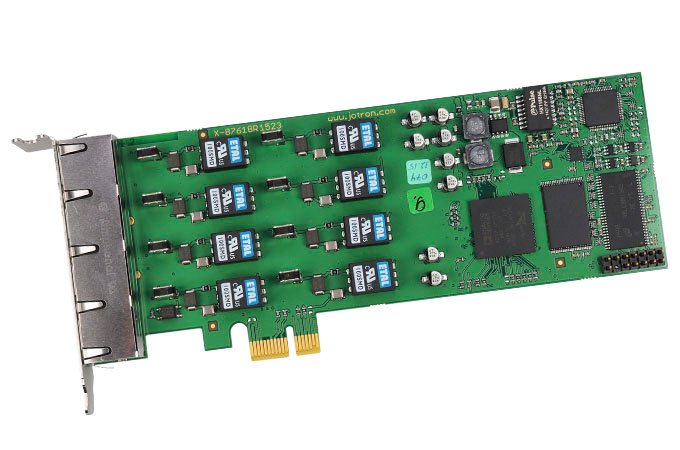

RACIF-8 Module / RACIF-8 Module kit with low profile bracket
Part Number: 80890
Ricochet Audio Converter Interface 8 channels (RACIF-8) is an acquisition module for analogue input signals. The purpose of this module is to adapt and isolate line input signals before sending them to a recorder.
RACIF-8 is a Peripheral Component Interconnect Express (PCIe) card that can be inserted into the expansion port on a server or a Ricochet Audio Converter (RAC2). The RAC2 is an expansion module that can host up to 15 RACIF-8 cards. The PCIe add-on card fits into a 2U sub rack or server and is available in two profile types; standard and low.
The RACIF-8 card supports 8 analogue input lines. RACIF-8 cards adapt and isolate a signal, then convert it into VoIP and make the data available on an Ethernet connection. There is a system indicator on the RACIF-8 card bracket. Depending on the audio lines and card status, the indicator will flash red or green. The card features a dry relay contact which supports normally open and normally closed looping, indicating the alarm status of an external alarm or watchdog circuitry.
Documentation type
Date
Type
Name
Size
Download
01.10.20
Marketing material
Product brochure RACIF-8
186 KB
